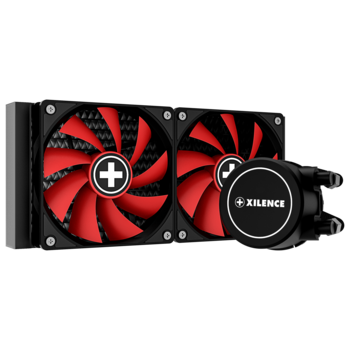

XC975 | LQ240

The new maintenance-free all-in-one liquid cooling systems from Xilence can convince with an outstanding price-performance ratio and easy handling. The installation with the quick-mount-system really easy and safe and due to the included multi-socket-mountings it can be applied on every socket from AMD or INTEL. The elegant sleeved and soft tubes follow easily the planned way of mounting  – no matter if the radiator is placed in the back, top, front or bottom of the case. The huge full-copper heat-spreader below the LED lit pump head and the powerful radiators, together with the hydrobearing PWM fans guarantee a silent running and a high performance. Available as a 120mm or 240mm version with a white LED lit pump head and 1 or 2 REDWING PWM fans respectively or as a 240mm RGD LED version with RGB LEDs on the pump head and 2 transparent RGB LED PWM Fans.

XC975

Cechy Produktu

  • Multi Socket Mountings for AMD and INTEL
  • Quick Mount System
  • Flexible tubes for versatile mounting
  • Big full copper heat spreader and high performance radiator
  • LED lit Pump Head with white LED
  • XILENCE PWM Fans REDWING

Dane Techniczne

Informacja ogólna

Model Performance A+ | LQ240
Overall dimensions (L x W x H) 274 x 120 x 52mm
Waga całkowita (kg) 1.52
Zakres mocy CPU (W) 300
Kompatybilny socket Intel: 1700 / 2066 / 2011 / 1151 / 1150 / 1155 / 1156 / 1200; AMD: AM4 / AM5
Overall noise level (db(A)) 18.0 - 32.2
Fan model, qty 120mm Redwing, 2
Technologia łożyska Ceramic bearing
Tube length (mm) 400
Color Black

otwórz wszystko / zamknij wszystkie

Radiator specifications
Radiator dimensions (mm) 274 x 120 x 27
Waterblock dimensions (mm) 72 x 72 x 47.3
Radiator material Aluminum
Cold plate material Copper
Podłączenie 3 Pin
Pump Speed (rpm) 2800 ± 10%
Pump specifications
Speed (rpm) 2800 ± 10%
Noise Level (dB(A)) 25
Input Current (A) 0.36
Technologia łożyska Ceramic bearing
Max. static pressure 2.09mm H²O
Specyfikacja wentylatora
Wymiary wentylatora (mm) 120 x 120 x 25
Prędkość obrotowa @ 100% PWM (RPM) 700 - 1800 ± 10%
Technologia łożyska Hydraulic bearing
Air Flow 70 CFM
Podłączenie PWM
Noise Level (dB(A)) 18.0 - 32.2
Input Current (A) 0.15
Akcesoria
Thermal grease Included
Logistical data
Numer artykułu XC975
Seria produktów Performance A+
Kod EAN 4044953502118
Wymiary, opakowanie (D x S x W), (mm) -
Waga opakowania brutto (kg) -
Ilość w opakowaniu (kartonie) -
Wymiary, opakowanie zbiorcze (D x S x W), (mm) -
Waga opakowania zbiorczego brutto (kg) -

Probierz

Installation guide
Instrukcja instalacji
Pobierz
