The fully modular power supplies of the X+ series are capable of absorbing high load peaks above the normal rated power in the shortest possible time and comply with Intel's Design Guide 3.0. Thus, the power supplies are ideally
suited for driving the latest and most powerful gaming graphics cards with PCI Express 5 specifications. An 80+ Gold certification confirms a high efficiency and energy efficiency of this power supply series. Six different protection circuits (OCP, OVP, UVP, SCP, OPP, OTP) ensure safe operation even in heated gaming sessions. The fans of the ATX 3.0 power supplies run with Fluid Dynamic Bearing technology and are very quiet. In addition, they convince with an extremely long durability and their excellent cooling performance. All of these specifications make the affordable Performance X+ series ideal for use with the latest gaming PC systems.
550W | 80+ Gold | semi-modular
XN071 | XP550R9650W | 80+ Gold | semi-modular
XN072 | XP650R9750W | 80+ Gold | semi-modular
XN073 | XP750MR9750W | 80+ Gold | semi modular | PCIe Gen 5.0
XN173 | XP750MR9.2850W | 80+ Gold | semi-modular
XN074 | XP850MR9850W | 80+ Gold | semi modular | PCIe Gen 5.0
XN174 | XP850MR9.21050W | 80+ Gold | full modular | PCIe Gen 5.0
XN176 | XP1050MR9.2| Peak Power (W) | 1250 |
| Factor de forma ATX 12V | Version 3.0 |
| Tensión de red (Vac) | 100 - 240 |
| Modelo | Performance X+ | XP1250MR9.2 |
| Frequencia de la red (Hz) | 50 - 60 |
| Corriente nominal (A) | 15 |
| PFC | active |
| +3.3V (A) | 20 |
| +5V (A) | 20 |
| +12V1 (A) | 104.2 |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Rendimiento total max. 12V (W) | 1250 |
| Rendimiento total max. 3,3V + 5V (W) | 100 |
| +12V2 (A) | - |

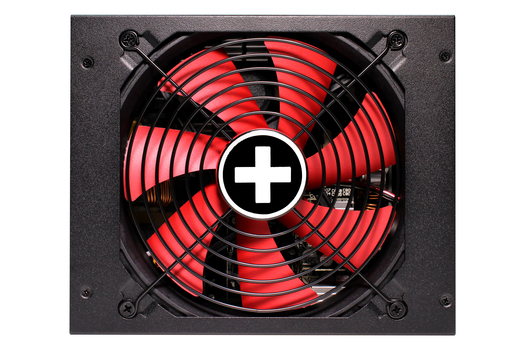

| Tecnología de rodamiento | FDB |
| Tamaño del ventilador (mm) | 140 |
| OCP (protección de sobrecorriente) | ✓ |
| OVP (protección de sobretensión) | ✓ |
| UVP (protección de mínima tensión) | ✓ |
| SCP (protección contra cortocircuito) | ✓ |
| OTP (protección de sobrecalentamiento) | ✓ |
| OPP (protección de sobrecarga) | ✓ |
| Certificación 80PLUS | Gold |
| eficiencia (%) a 230V, carga 20% | 90 |
| Effizienz (%) a 230V, carga 50% | 92 |
| Effizienz (%) a 230V, carga 100% | 89 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |
| Gestión de cables modular | ✓ |
| Longitud de cable a la placa base (mm) | 650 |
| Longitud del cable hasta el 1.er conector (mm) | 500 |
| Longitud de cable máxima(mm) | 950 |
| Cables encamisados | ✓ |
| Número de cables | 10 |
| Placa madre ATX (20+4-pin) | 1 |
| P4+4 (CPU) | 2 |
| P8 (CPU) | - |
| PCI-E 6-pin (GPU) | - |
| PCI-E 6+2-pin (GPU) | 4 |
| PATA 4-pin | - |
| SATA 15-pin(HDD, unidades) | 12 |
| FDD (Floppy) | - |
| Serie de productos | Performance X+ |
| Número de artículo | XN178 |
| Código EAN | 4044953503511 |
| Dimensiones, Embalaje (L x An x Al), (mm) | 180 x 150 x 86mm |
| Peso bruto, por unidad (kg) | 3.46 |
| Número por unidad de embalaje (UE) | 6 |
| Dimensione UE (L x An x Al), (mm) | 600 x 343 x 215 |
| Peso bruto UE (kg) | 20.8 |
