XC975 | LQ240

The new maintenance-free all-in-one liquid cooling systems from Xilence can convince with an outstanding price-performance ratio and easy handling. The installation with the quick-mount-system really easy and safe and due to the included multi-socket-mountings it can be applied on every socket from AMD or INTEL. The elegant sleeved and soft tubes follow easily the planned way of mounting  – no matter if the radiator is placed in the back, top, front or bottom of the case. The huge full-copper heat-spreader below the LED lit pump head and the powerful radiators, together with the hydrobearing PWM fans guarantee a silent running and a high performance. Available as a 120mm or 240mm version with a white LED lit pump head and 1 or 2 REDWING PWM fans respectively or as a 240mm RGD LED version with RGB LEDs on the pump head and 2 transparent RGB LED PWM Fans.

XC975

Article features

  • Multi Socket Mountings for AMD and INTEL
  • Quick Mount System
  • Flexible tubes for versatile mounting
  • Big full copper heat spreader and high performance radiator
  • LED lit Pump Head with white LED
  • XILENCE PWM Fans REDWING

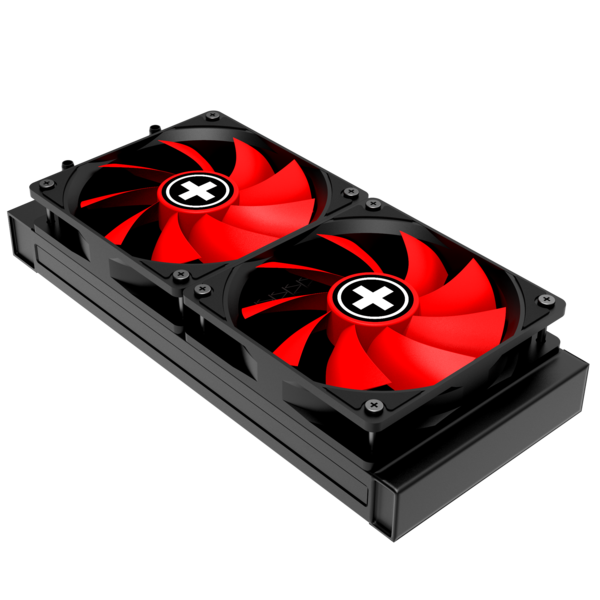

High performance radiator with 120mm PWM fans

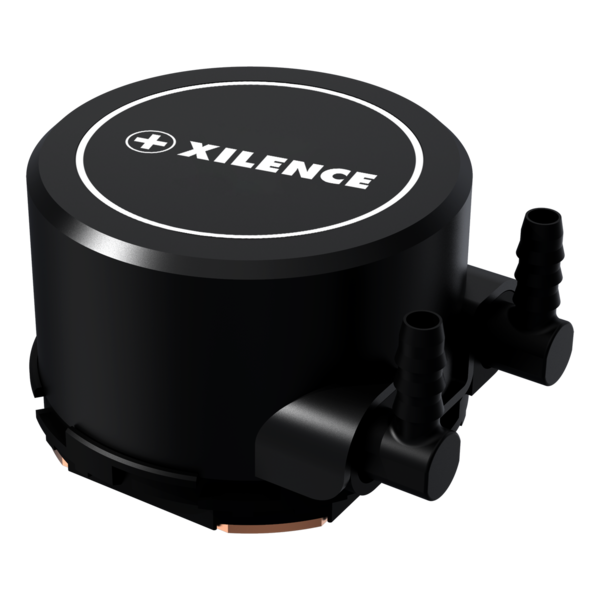

LED lit pump head with white LED

Big full copper Heat Spreader

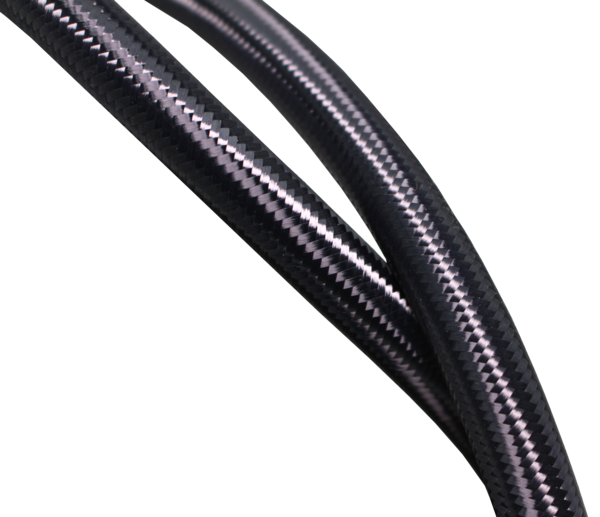

Flexible tubes for versatile mounting

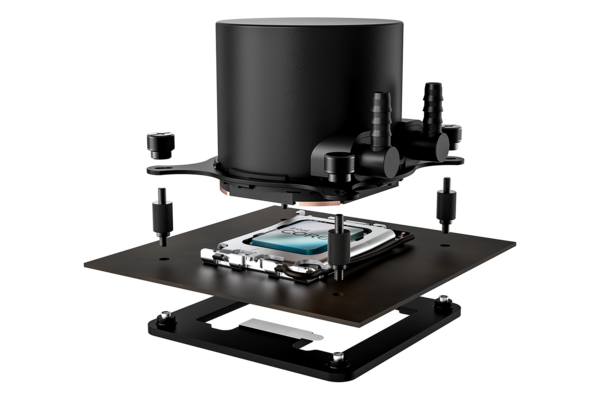

Quick Mount System

Technical data

General data

Model Performance A+ | LQ240
Overall dimensions (L x W x H) 274 x 120 x 52mm
Total weight (kg) 1.52
TDP (W) 300
Socket compatibility Intel: 1700 / 2066 / 2011 / 1151 / 1150 / 1155 / 1156 / 1200; AMD: AM4 / AM5
Overall noise level (db(A)) 18.0 - 32.2
Fan model, qty 120mm Redwing, 2
Bearing technology Ceramic bearing
Tube length (mm) 400
Color Black

open all / close all

Radiator specifications
Radiator dimensions (mm) 274 x 120 x 27
Waterblock dimensions (mm) 72 x 72 x 47.3
Radiator material Aluminum
Cold plate material Copper
Connector 3 Pin
Pump Speed (rpm) 2100 ± 10%
Pump specifications
Speed (rpm) 2100 ± 10%
Noise Level (dB(A)) 25
Input Current (A) 0.36
Bearing technology Ceramic bearing
Max. static pressure 2.09mm H²O
Fan specifications
Fan dimensions (mm) 120 x 120 x 25
Speed @ 100% PWM (rpm) 700 - 1800 ± 10%
Bearing technology Hydraulic bearing
Air Flow 70 CFM
Connector PWM
Noise Level (dB(A)) 18.0 - 32.2
Input Current (A) 0.15
Accessories
Thermal grease Included
Logistical data
Article number XC975
Range Performance A+
EAN code 4044953502118
Dimensions, package (L x W x H), (mm) -
Gross weight, package (kg) -
Pieces per packaging unit -
Dimensions, shipping box (L x W x H), (mm) -
Gross weight, shipping box (kg) -
