Xilence



Performance C Series | XP600R6

XN044 | XP600R6

The new Xilence Performance C series is focusing on the essentials. Designed for office and home computers, the new Performance C series delivers stable voltages with high efficiency (ErP2014). This guarantees a considerably low fan noise. Four built-in safety circuits ensure safe operation at all times.
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6
Product image 7
Product image 8
XN044

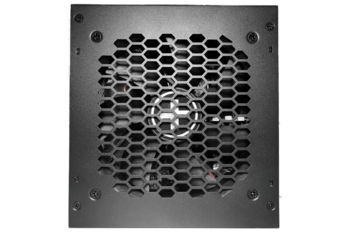

Other products of this series:
Contact

Article features

  • Extremely silent cooling: large 120mm fan
  • Excellent air flow design for a better heat dissipation
  • Following safety design:
    • OVP (Over Voltage Protection)
    • UVP (Under Voltage Protection)
    • SCP (Short Circuit Protection)
    • OLP (Over Load Protection)
  • Low stand-by consumption
  • Complies with ErP2014 norm
  • Active-PFC

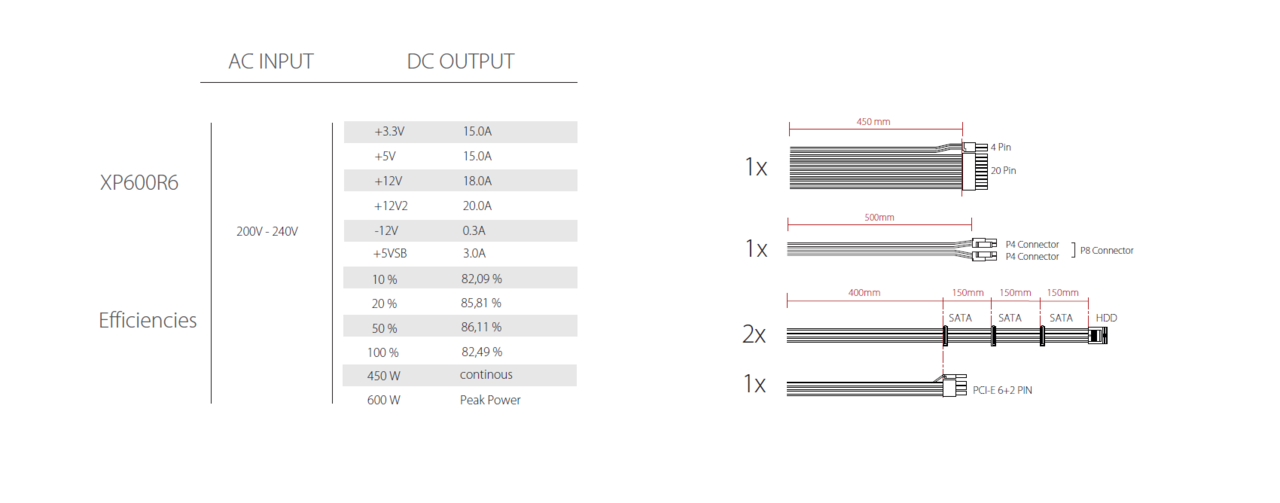

    Technical data

    General data

    Peak Power (W) 600
    Form factor ATX 12V Version 2.31
    Voltage (Vac) 200 - 240
    Model Performance C | XP600R6
    Frequency (Hz) 50
    Input current (A) 6.3
    PFC active

    open all / close all

    Output
    +3.3V (A) 15
    +5V (A) 15
    +12V1 (A) 18
    -12V (A) 0.3
    +5Vsb (A) 3.0
    Max. combined power 12V (W) 396
    Max. combined power 3.3V + 5V (W) 103
    +12V2 (A) 20
    Fan / Cooling technology
    Bearing technology FDB
    Fan size (mm) 120
    Protection
    OCP (over current protection) -
    OVP (over voltage protection) ✓
    UVP (under voltage protection) ✓
    SCP (short circuit protection) ✓
    OTP (over temperature protection) -
    OPP (over power protection) ✓
    Eco / Efficiency
    80PLUS certification -
    Efficiency (%) at 230V, 20% load 85.81
    Efficiency (%) at 230V, 50% load 86.11
    Efficiency (%) at 230V, 100% load 82.49
    Environmental directives
    ErP ✓
    WEEE ✓
    RoHS ✓
    Cable management / Connectors
    Modular cable management -
    Cable length to mainboard (mm) 450
    Cable length to first connector (mm) 400
    Maximum cable length (mm) 850
    Sleeved cables -
    No. of cables 5
    ATX-Motherboard (20+4-pin) 1
    P4+4 (CPU) 1
    P8 (CPU) -
    PCI-E 6-pin (GPU) -
    PCI-E 6+2-pin (GPU) 1
    PATA 4-pin 2
    SATA 15-pin (HDD, Drives) 6
    FDD (Floppy) -
    Logistics data, RRP
    Range Performance C
    Article number XN044
    EAN code 4044953500237
    Dimensions, package (L x W x H), (mm) 140 x 150 x 86mm
    Gross weight, package (kg) 1.63
    Pieces per packaging unit 10
    Dimensions, shipping box (L x W x H), (mm) 510 x 350 x 250
    Gross weight, shipping box (kg) 16.94

    Downloads

    Datasheet
    Datasheet
    Download
    Technical data
    Technical data
    Download
