Xilence



PWM Case Fans | XPF92.R.PWM

XF041 | XPF92.R.PWM

The Xilence Performance C PWM fan series excels with an extraordinary price-performance ratio and a very good proficiency combined with a lo noise development. The black and red case fans are equipped with PWM function as well as high-quality hydro bearings and are available in 3 different sizes.
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
XF041

Other products of this series:
Contact

Article features

  • Optimal performance in every situation
  • Hydro bearing fan
  • Airflow-optimized rotor blades
  • PWM function

    Technical data

    General data

    Model Performance C | XPF92.R.PWM
    Dimensions (mm) 92
    Fan speed @ 12V (rpm) 900 - 1800 ± 10%
    Color Black

    open all / close all

    Mechanical specifications
    Dimensions (L x W x H), (mm) 92 x 92 x 25
    Bearing technology Hydro Bearing
    Weight incl. fixed cables (kg) 0.1
    Cables / Connectors
    Connector 4 pin
    Cable length (mm) 450
    Performance / Noise
    Air flow @ 12V (cfm / m3/h) 32.1 / 54.57
    Noise level @ 12V (dB(A)) max. 22
    Electrical specifications
    Rated voltage DC (V) 12
    Operating voltage DC (V) 6 - 13.8
    Accessories
    Screws 4
    Service
    Warranty (Years) 2
    Logistics data, RRP
    Article number XF041
    Range Performance C
    EAN code 4044953500893
    Dimensions, package (L x W x H), (mm) 100 x 30 x 120
    Gross weight, package (kg) 0.13
    Pieces per packaging unit 100
    Dimensions, shipping box (L x W x H), (mm) 530 x 310 x 330
    Gross weight, shipping box (kg) 9.3

    Downloads

    Datasheet
    Datasheet
    Download

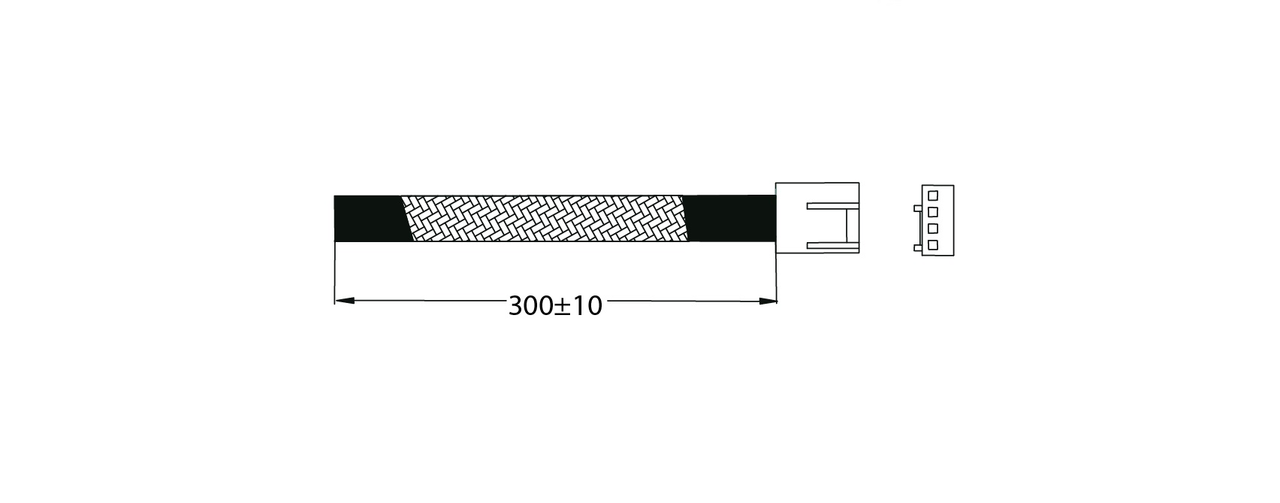

    Cable connection
    Cable connection
    Download
